    IG-55 Fire Extinguishing System For Data Center

    Ask Lasest Price
    Brand Name : Air Giant
    Model Number : DYMP80/20, DYMP140/20, DYMP80/30, DYMP140/30
    Certification : CAL,CMA,CNAS,ILAC-MRA,CCC
    Price : negotiation
    Payment Terms : L/C,D/P,T/T,Western Union,Paypal,Credit card
    Supply Ability : 300 sets per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

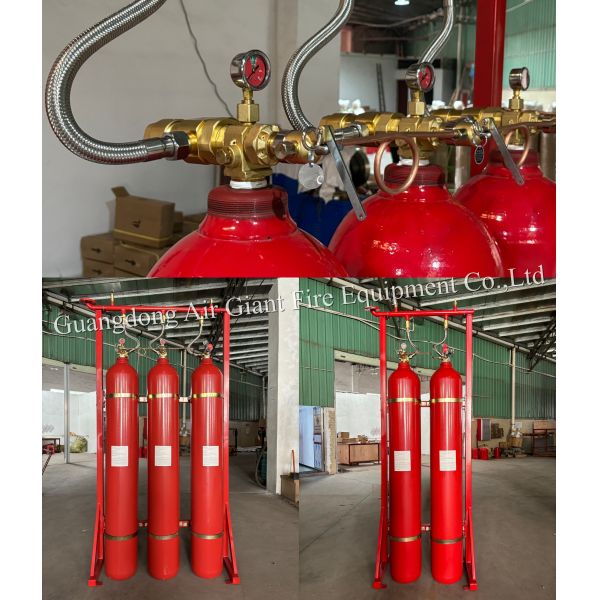

    IG-55 Fire Extinguishing System For Data Center

    IG-55 Fire Extinguishing System For Data Center


    Description:

    IG-55 – Nitrogen and Argon: is an inert gas comprising 50% Argon & 50% Nitrogen. IG-55 Fire Suppression Systems reduce the oxygen concentration inside the protected hazard area. Each system is designed to decrease oxygen at specific levels when discharged, ensure that the agent is quickly and consistently distributed and reaches concentration in 60 seconds.

    IG-541 – Nitrogen, Argon and CO2: is one of the most popular fire protection agents, comprising of 52% Nitrogen, 40% Argon and 8% CO2. An IG-541 fire suppression system reduces the oxygen concentration inside the protected hazard area. This is minimised by the application of the IG-541 agent until it reaches a level where combustion is no longer supported or sustainable. IG-541 is stored in high-pressure cylinders as a compressed gas and so the space required for cylinder storage depends on the system pressure and discharge capacity required.

    IG-100 – Pure Nitrogen: is a clean fire extinguishing agent consisting of 100% Nitrogen and is used in total flooding systems. IG-100 suppression systems are based on the principle of reducing the oxygen concentration inside the protected hazard area. The oxygen concentration is minimized by the application of IG-100 until it reaches a level where combustion is no longer supported. Each system is designed to decrease oxygen to a specific level. When discharged, IG-100 is quickly and uniformly distributed within the enclosure, achieving design concentration in 60 seconds.

    Inert gasses are naturally present in the atmosphere, and so when used as fire suppression agents, they have zero greenhouse effect and ozone layer depletion potential.


    Components:

    1
    Storage Cylinders
    5
    Smoke Detectors, Heat Detectors
    9
    Manual Release Station
    2
    Release Device
    6
    Control
    10
    Backup Power Supply
    3
    Piping Network
    7
    Audible and Visual Alarms
    11
    Signage and Instructions
    4
    Nozzles
    8
    Pressure Switches and Gauges
    12
    Ventilation System(selection)

    Features:

    1. Cylinders available in 300 and 200 bar pressure options

    2. Cylinders available in 80 and 140 litre capacities

    3. Nozzles available with 360 and 180 degree discharge patterns

    4. Cylinders suitable for storage at temperatures from -20° to +54°C (-4°to +130°F)

    5. Selector valve sizes range from 1” to 4” (25 to 100 mm nominal)

    6. Green agents with zero ozone depletion and zero global warming)

    7. Non-conductive – suitable for electronic equipment protection

    8. Clean Agents with no clean-up of agent required after discharge


    Applications:

    1. Art Galleries

    2. Computer Rooms

    3. Control Rooms

    4. Data Centres

    5. Electric Switch Rooms

    6. Financial Centres and Banks

    7. Medical Facilities

    8. Museums

    9. Petrochemical Installations

    10. Pharmaceutical Facilities

    11. Rare Book Libraries

    12. Record Storage Facilities

    13. Server Rooms

    14. Telecommunication Centers



    Packing and Shipping:


    We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
