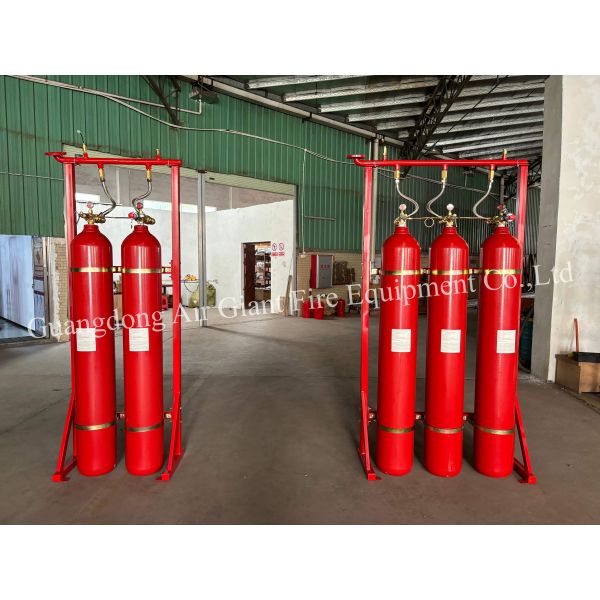

    Advanced Automatic IG55 Inert Gas Fire Suppression System

    Ask Lasest Price
    Brand Name : Air Giant
    Model Number : DYMP80/20, DYMP140/20, DYMP80/30, DYMP140/30
    Certification : CAL,CMA,CNAS,ILAC-MRA,CCC
    Price : negotiation
    Payment Terms : L/C,D/P,T/T,Western Union,Paypal,Credit card
    Supply Ability : 300 sets per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Advanced Automatic IG55 Inert Gas Fire Suppression System

    Advanced Automatic IG55 Inert Gas Fire Suppression System


    Description:


    IG-55 is a gas composed of an equal combination of two elements: 50% argon and 50% nitrogen. These elements occur naturally in the environment, making IG-55 environmentally friendly as it has no impact on global warming and does not harm the ozone layer.
    IG-55 has a density similar to that of air, and both argon and nitrogen are clean, colorless, and odorless gases that are non-corrosive. This makes IG-55 highly adaptable to various actuation systems, as it can be safely used with materials such as nickel, steel, stainless steel, copper, bronze, tin, and others at normal temperatures.
    Storage for IG-55 is similar to that of compressed gas, where it is contained in high-pressure cylinders. The space required for storage will depend on the pressure and capacity of the cylinders. Our IG-55 system is designed to operate at a pressure of 30MPa, enabling us to achieve efficient use of storage space.


    Technical parameters of IG55 fire suppression system

    Working temperature ()

    0+50℃

    Working pressure

    Storage pressure

    20.0MPa

    30.0MPa

    Max. working pressure (+50℃)

    23.2MPa

    36.6MPa

    Min. working pressure (-20℃)

    18MPa

    27MPa

    Container volume (L)

    80L

    140L

    Filling weight (kg, @200 bar)

    22.32kg

    39.06kg

    Filling weight (kg, @300 bar)

    33.48 kg

    58.59kg

    System operating voltage

    220V AC,24V DC

    System start mode

    Electrical automatic, electrical manual, mechanical emergency start

    Design concentration

    Class A dangerous material surface fire

    40.3%

    Class B

    47.6%

    The design concentration of the protective zone with people working

    40.3%43%

    Components:

    Storage cylinder group, storage cylinder group frame, nitrogen driving device, nitrogen driving device frame, the cylinder valve, liquid flow check valve, air flow check valve, electromagnetic starter, gas conveying pipeline, collecting pipe, choice valve, three links, reducer tee, reducing elbow, flange, safety valve, pressure transmitter, pipe, nozzle, chemicals, fire detector, fire controller, sound and light alarm, alarm bell, gas light, emergency start / stop button, etc.

    Features:

    -- Clean and Non-Residue

    -- Environmentally Friendly

    -- Safe for Occupants

    -- Effective Fire Suppression

    -- Non-Conductive

    Applications:

    1. Data Centers and Server Rooms: Protects sensitive electronic equipment without causing damage.

    2. Archives and Libraries: Safeguards valuable documents and artifacts.

    3. Telecommunication Facilities: Ensures uninterrupted operations during fire incidents.

    4. Museums and Cultural Heritage Sites: Preserves irreplaceable items.

    5. Power Generation Facilities: Protects critical infrastructure.


    Packing and Shipping:

    We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
